Cleanroom-compatible GLO.CR roller supports

Very low particle emission thanks to optimised roller surfaces

Design study

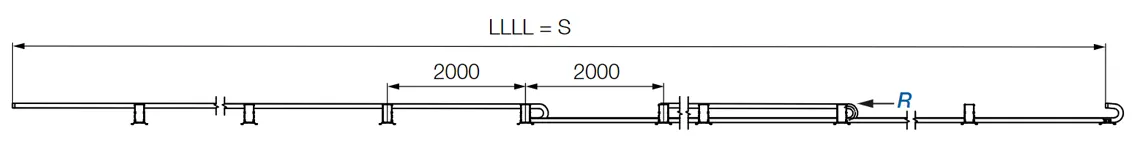

Cleanroom-compatible roller supports for long travel distances. The upper run of the cleanroom-compatible e-chain® E6.52 is supported over long travel distances, eliminating the particle emissions caused by sliding. Motor-controlled rocking of the roller guide minimises contact.

Send a query about cleanroom-compatible GLO.CR roller supports now

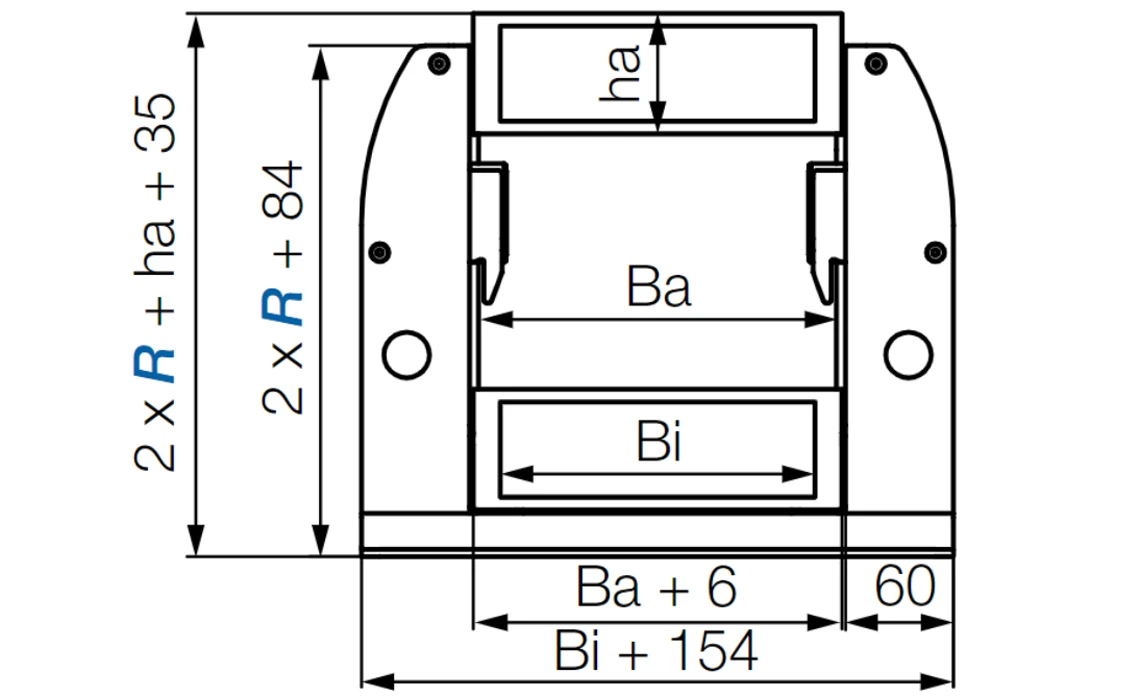

Part No. Support plate	Part No. e-chain series	Inner width [mm]	Bend radius [mm]	Support gap [mm]
GLO.CR.56.R	E6.52	50 - 300	075 - 250	1,000 - 2,000

Tech up

Roller supports for long travel lengths without gliding
Advantages of cleanroom chains also for long travel lengths
Disappearance of the support rollers for the radius solved by spring force and motor drive (optional)

Cost down

Very low particle emission thanks to optimised roller surfaces and a spring instead of a fibre-rod

Proof

IPA certification of a complete system with 4 supports
and E6.52 with cleanroom class ISO 5 for series GLO.CR.56

Sustainability

No material contamination from particles

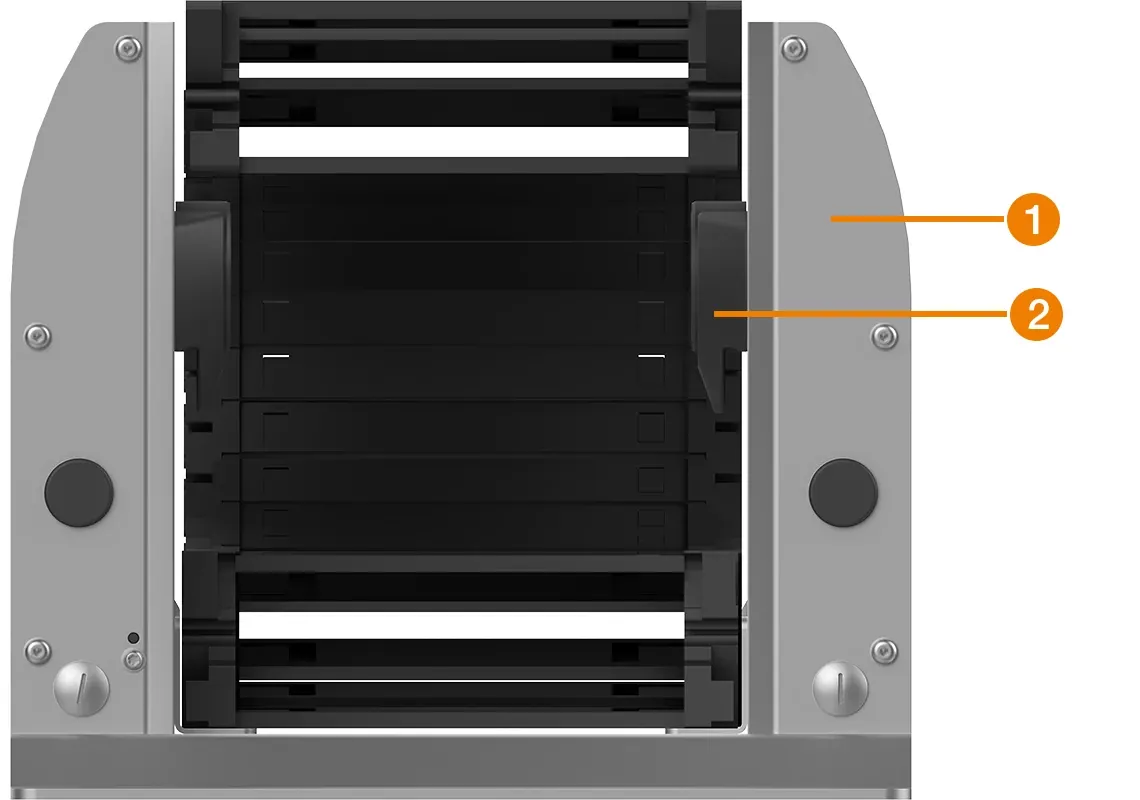

1. cleanroom-compatible roller supports
2. motorised rocking of the roller guide keeps contact to a minimum

Matching energy chain from the E6 series for cleanroom-compatible roller supports

In addition to its long service life, the E6 system offers numerous other advantages. For example, it is characterised by extremely quiet, low vibration operation - making it a good match for the low vibration drive concept of the linear motor. The so-called polygon effect, which can occur when an energy supply unwinds, is reduced to a minimum. The extremely low noise level is confirmed in an expert report by TÜV Immissionsschutz und Energiesysteme GmbH.
