Traverse paths, positions, speeds, running times - simply defined with the new web-based control system for drylin® E linear systems from igus®.

  • No software or app installation required, quick commissioning
  • Control system can be operated via smartphone (browser), tablet or laptop
  • Simple and intuitive user interface, control system set up in just a few minutes
  • Compatible with numerous industrial control systems (e.g. Siemens S7 / Beckhoff). Learn more
  • For DC, EC and stepper motors
  • cost-effective

All relevant documents - flyers and technical data, the latest firmware, operating instructions, CANopen Electronic Data Sheet, 2D and 3D drawings - can be found in the shop under Downloads for the respective product.

dryve Test motor control

Using the intuitive browser interface, you can set the travel mode, positions, accelerations, speed and pause times of your linear axis in just a few minutes without any prior knowledge.

Test the user interface of the motor controller here using a simulated linear axis. Just as in this simulation, your input is transferred directly when using the real control system. There is no need for a separate transfer.

It's that simple: Under Driving profiles, you can configure up to eight lines and transfer the control system to the linear axis with one click. In the Mode field, use HOM to set the zero point or ABS to set the absolute position for the movement on the linear axis. Select the target by entering the position on the axis or by using the Teach function. Enter values for acceleration, speed and deceleration and, if necessary, a pause time. Under Next set, specify the number of the next travel profile.

drylin® D1 dryve Tutorials

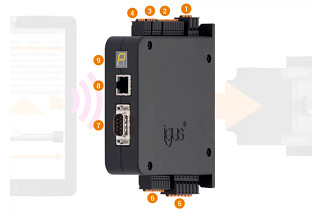

1. Voltage supply
Logic and load supply are separated in order to realise safety shutdowns.
The logic supply has 12-24 V and the load supply has 12-48 V.

2. Digital inputs
Movements can be selected, started and stopped at the 10 predefined inputs. With two limit switches and an enable input, the motor control unit can also perform safety functions.

3. Digital outputs
Information from the motor control unit can be called up at the 5 predefined outputs. The motor control unit reports whether it is ready or is currently executing a movement, whether it is referenced or whether warnings or errors are present.

4. Analogue inputs
Two analogue inputs can be used to read in absolute position information from a linear axis, for example, or to specify speeds or positions. Using an "electronic hand wheel", a linear axis can be moved without changing the parameters.

5. motor & Brake connection
DC, 3-phase EC and 2-phase stepper motors can be connected to the motor connection. A motor brake connection is also integrated in this connector.

6. rotary encoder
A rotary encoder is required to optimise motor control and determine an exact position. The motor control unit is designed for many different types of rotary encoder with a voltage supply of 5 V.

4. Analogue inputs
Two analogue inputs can be used to read in absolute position information from a linear axis, for example, or to specify speeds or positions. Using an "electronic hand wheel", a linear axis can be moved without changing the parameters.

5. motor & Brake connection
DC, 3-phase EC and 2-phase stepper motors can be connected to the motor connection. A motor brake connection is also integrated in this connector.

6. rotary encoder
A rotary encoder is required to optimise motor control and determine an exact position. The motor control unit is designed for many different types of rotary encoder with a voltage supply of 5 V.

The control system in detail

Ready to use immediately

The dryve motor control unit can either be connected to your network or you can connect directly to the control unit (PC or PLC) via a network cable. You can then start the control system directly in the browser without software installation.

This allows adjustments to be carried out in one minute.

You need one dryve motor control unit per linear axis.

Easy control

You can use the simple intuitive user interface to parameterise travels, position, speed and operating time of your linear axis even as an amateur.

Constantly repeating movements, the so-called "loops", can be set in just a few seconds. A teach function enables position settings to be made with just one mouse click.<br /><br />

Industry standards

With standardised communication protocols such as CANopen or Modbus TCP as gateway, it is easy to connect the system to industrial controllers such as Siemens S7 or Beckhoff.

The ten digital inputs and outputs enable extremely easy communication with industrial controllers but also with low-price open-source modules such as Arduino or Raspberry Pi.

Powerful technology

dryve supports DC, EC and stepper motors both in open loop and closed loop technology.

The high supply voltage of up to 48V ensures high motor speeds. The strong nominal current of 7A and the high peak current of 20A results in powerful and dynamic movements.

Videos

Technical data

nominal voltage Logic supply

12 - 24 VDC

nominal voltage load supply

12-48VDC

Motor types

2-phase stepper motor bipolar (ST), direct current motor (DC), electronically commutated motor (EC)

Continuous motor current

7A

Peak motor current

ST: 10A, DC: 14A, EC: 21A max. 2 sec depending on frequency of movement

Load power output

max. 340W continuous

Output current digital outputs

max. 200mA per output

Holding brake

24V DC/1A

Angular encoder

Hall sensor (2 or 3 pole), encoder (line driver RS422 or single ended)
analogue feedback via analogue inputs

Digital inputs

10 digital inputs, predefined function, selection NPN or PNP, built-in pull-down (PNP) and pull-up (NPN) resistors, short-circuit-proof, galvanically isolated, 5 - 24 VDC (external)

Digital outputs

5 digital outputs, function predefined, PNP, built-in pull-down resistors, short-circuit-proof, galvanically isolated, 5 - 24 VDC (external)

Analogue inputs

2 analogue inputs, ±10 VDC signal (12 bit), 0-10 VDC signal (11 bit), 10 VDC power supply

Interfaces

CANopen (DS 402), Modbus TCP as gateway (CiA 309), Ethernet, bit coding, cycle/direction

Operating modes

Open loop with/without position monitoring, closed loop

Driving modes


Binary: 32 traverse positions Jog Teach: 8 traverse positions in combination with external jog mode
Clock/direction: Ext. Setpoint specification

CE mark according to electromagnetic compatibility guideline

EN 61000-6-2:2005, EN 61000-6-3:2007

Ambient temperature

-20 °C to +45 °C

Relative humidity

≤ 90%, non-condensing

Maximum temperature of the power unit

100°C

Bearing temperature

-40°C to +60°C

Protection class

IP 30

Protective functions

Power unit temperature monitoring, current monitoring, undervoltage/overvoltage protection, tracking error detection, encoder monitoring

Fastening

Screw assembly, top-hat (DIN) rail installation

D x W x H in mm (incl. connectors and mounting elements)

124 x 31 x 139
