E2/000 e-chain® - Two-piece - The standard for E2

The E2/000 series is igus® 's fourth generation in this size. All our experience has gone into this series: easy and versatile assembly combined with robustness - high stability combined with quiet running, long service life of the cable and a wide range of mounting options. The design is standardised for all E2/000 models. Machine builders all over the world rely on this programme.

Overview of E2/000 advantages

Special folding mechanism, can be opened from the left or right. hinged crossbar can be rotated by more than 180° on both sides.

Half e-tube version. outer radius completely closed. inner radius can be swivelled open to the right or left as required.

Secure fit of dividers and interior separation even when the e-chain is open®.

inner height 21 mm, energy chain, "half" energy tube, energy tube

Series 1500

inner height hi: 21 mm
inner width Bi: 15 - 125 mm
bend radius R: 35 - 180 mm
pitch: 33.3 mm

To the 1500 series

Series 1400

inner height hi: 21 mm
inner width Bi: 15 - 125 mm
bend radius R: 35 - 180 mm
pitch: 33.3 mm

To the 1400 series

Series 1450

inner height hi: 21 mm
inner width Bi: 15 - 125 mm
bend radius R: 35 - 180 mm
pitch: 33.3 mm

To the 1450 series

Series 1480

inner height hi: 21 mm
inner width Bi: 15 - 125 mm
bend radius R: 35 - 180 mm
pitch: 33.3 mm

To the 1480 series

Series EF2.21

inner height hi: 21 mm
inner width Bi: 25 - 50 mm
bend radius R: 35 - 180 mm
pitch: 33.3 mm

inner height 25 mm, energy chain, "half" energy tube, energy tube

Series 2500

inner height hi: 25 mm
inner width Bi: 25 - 125 mm
bend radius R: 55 - 250 mm
pitch: 46 mm

To the 2500 series

Series 2400

inner height hi: 25 mm
inner width Bi: 25 - 125 mm
bend radius R: 55 - 250 mm
pitch: 46 mm

To the 2400 series

Series 2450

inner height hi: 25 mm
inner width Bi: 25 - 125 mm
bend radius R: 100 - 250 mm
pitch: 46 mm

To the 1450 series

Series 2480

inner height hi: 25 mm
inner width Bi: 38 - 103 mm
bend radius R: 100 - 250 mm
pitch: 46 mm

To the 2480 series

inner height 35 mm, energy chain, "half" energy tube, energy tube

Series 2700

inner height hi: 35 mm
inner width Bi: 50 - 175 mm
bend radius R: 63 - 250 mm
pitch: 56 mm

To the 2700 series

Series 2600

inner height hi: 35 mm
inner width Bi: 50 - 175 mm
bend radius R: 63 - 250 mm
pitch: 56 mm

To the 2600 series

Series 2650

inner height hi: 35 mm
inner width Bi: 50 - 175 mm
bend radius R: 100 - 250 mm
pitch: 56 mm

To the 2650 series

Series 2680

inner height hi: 35 mm
inner width Bi: 50 - 100 mm
bend radius R: 100 - 250 mm
pitch: 56 mm

To the 2680 series

inner height 45 mm, energy chain, "half" energy tube, energy tube

Series 3500

inner height hi: 45 mm
inner width Bi: 50 - 255 mm
bend radius R: 75 - 300 mm
pitch: 67 mm

To the 3500 series

Series 3400

inner height hi: 45 mm
inner width Bi: 50 - 255 mm
bend radius R: 75 - 300 mm
pitch: 67 mm

About the 3400 series

Series 3450

inner height hi: 45 mm
inner width Bi: 50 - 255 mm
bend radius R: 150 - 300 mm
pitch: 67 mm

About the 3450 series

Series 3480

inner height hi: 45 mm
inner width Bi: 75 - 115 mm
bend radius R: 150 - 300 mm
pitch: 67 mm

To the 3480 series

inner height 24 mm, small pitch for quiet running at high speed

Series 255

inner height hi: 24 mm
inner width Bi: 25 mm
bend radius R: 55 - 250 mm
pitch: 27.8 mm

Series 255

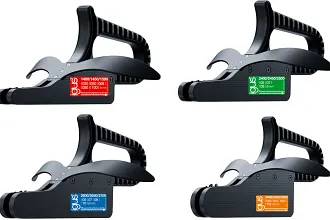

e-chain® opener

E2/000 open e-chain® quickly with the e-chain® opener

To the chain opener

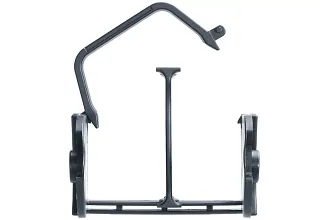

E2/000 bow chains

Two-piece - The E2 standard as a bow chain variant

Go to product overview
