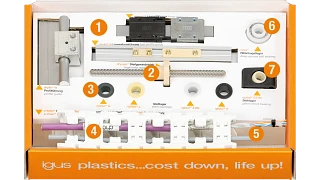

Discover the medical technology sample box

drylin® W-profile guide

• Maximum flexibility thanks to a wide range of materials and shapes
• Single, double and curved rails
• Over 50 different versions of profile slides and linear housings

drylin® T-rail guide

• Easy changeover to the sliding system thanks to identical connection and drilling dimensions to standard recirculating ball bearing and guideway systems
• Precise slide guidance thanks to optional clearance adjustment

drylin® N-low-profile guide system

• With system heights from 6 to 12 mm, ideal for small installation spaces
• Guide carriage optionally with spring preload for rattle-free running
• Simple assembly

Closing mechanism of dental casting unit

drylin® W-linear guides ensure permanently reliable opening and closingin the inductive casting unit from Forma Heraeus Kulzer. Even at high temperatures and in dirty conditions.

Seat adjustments in power wheelchairs

The company Motion Solutions relieson drylin® W-linear guide for the seat length and height adjustments of its power wheelchairs and rehabilitation therapy systems.

Axis portal for automated sample preparation

drylin® N-low-profile guide system and T-rail guides are usedin the vending machine for sample preparation in trace analysis at AIS Bad Düben.

High helix lead screw made of stainless steel

• Designed for fast and very efficient applications
• Not self-locking
• 100 % corrosion-free
• Low wear

High helix lead screw nut with flange, JFRM

• Made from the all-round material iglidur® J
• High efficiency at all speeds
• Low coefficient of friction and low wear rates
• Application range up to +90°C upper long-term application temperature

Filling system for reaction vessels

In the fully automatic filling system for in-vitro diagnostics, bioanalytic GmbH uses dryspin® trapezoidal threaded spindles and lead screw nuts for feeding and lifting movements.

Thumb movement in bionic hand prosthesis

A dryspin® high helix lead screw with lead screw nut ensures a precise, smooth and quiet thumb movement mechanism in the bionic hand prosthesis from Aether Biomedical.

Stand for surgical microscopes

In a microscope stand for the dental sector, the designers at LEICA Microsystemshave found the perfect solution for the very tight installation space with dryspin® lead screw technology.

iglidur® Q

• Resistant to high loads (>60 N/mm²)
• For high speeds
• Very good coefficient of friction
• Good wear resistance at room temperature

iglidur® X

• Temperature resistant from -100 °C to +250 °C
• Universal chemical resistance
• For static pressure loads up to 150 MPa

iglidur® A180

• FDA and EU 10/2011 compliant all-rounder
• Lowest moisture absorption
• High media resistance
• Resistant to edge pressure, impacts, dirt and dust

iglidur® J

• Versatile endurance runner with lowest friction values in dry operation
• Very low stick-slip tendency
• Suitable for low to medium pressure loads

linear drive of infusion pumps

iglidur® J bearings in a special design enablea highly precise, jerk-free movement of the linear drive in the infusion pumps from B. Braun , completely without contaminating external lubricants.

Joint points in knee prostheses

In the knee joint prostheses, iglidur® Q and W300 bearings replace the needle and bronze bearingspreviously used , which were susceptible to dust, developed noise and clearance and fretting corrosion.

Various pivot points in exoskeleton

Bearings and thrust washers made of various iglidur® materials score points in the Pathway exoskeleton with their low weight and make a compact design possible.

Imaging units Two-level fluoroscope

The e-chain® series P4 and E4.1 are used to safely guide the many power and signal cables on the fluoroscope at ETH Zurich during fluoroscopy.

Mobile gantry on innovative X-ray system

GE Healthcare relies on our stable and low-noise e-chain® from page E4.1for the transport unit of its innovative X-ray and digital detector system for vascular imaging.

room linear robot for bioanalysis filling line

M2-Automation uses our maintenance-free drylin® e-portal robots in its customised filling system. E2-energy chains ensure the safe guidance of the cables.

chainflex® data cable

• For medium loads
• PUR-outer jacket
• overall shield
• Resistant to hydrolysis and microbes

chainflex® bus cable CF888

• For flexible use
• PVC-outer jacket
• overall shield
• No oil resistance

readycable® connection cable angled M12 x 1

• For the highest demands
• TPE-outer jacket
• Coolant-resistant and flexible at low temperatures
• Resistant to hydrolysis and microbes

Rehab robots for gait training

To ensure that the gait trainer from Reha Technology is reliably supplied with energy and signals, the designers rely on our highly flexible chainflex® cable and compact e-chain®.

Ultrasound device handpieces

Twistable robotic cables from the chainflex® cable programme reduce malfunctions in the Biosetultrasound device for lipolysis stimulation.

Height adjustment of hydraulic operating table

In this new development from Maquet, highly bend-resistant chainflex® control cables are guided in an S-shaped energy chain in the table base in a very small installation space.

Travelling trays in blood sample refrigerator

To minimise maintenance and corrosion at the bearing points, Loll Feinmechanik uses our lubrication-free bearing technology, including igubal® rod end.

Bearings in ankle joint prosthesis

An igubal® spherical ball together with iglidur® bearings in this prosthesis from Adaptive Sports Ankle Prosthetics ensures safe movement even under high impact loads and contact with salt water.
